Automatic Voltage Regulator AVR EA04C Compatible with Basler Regulator VR63-4C Automotive Motorcycle Parts for Part Number AVR EA04C
Product details
| Management number | 215474186 | Release Date | 2026/04/12 | List Price | $53.74 | Model Number | 215474186 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

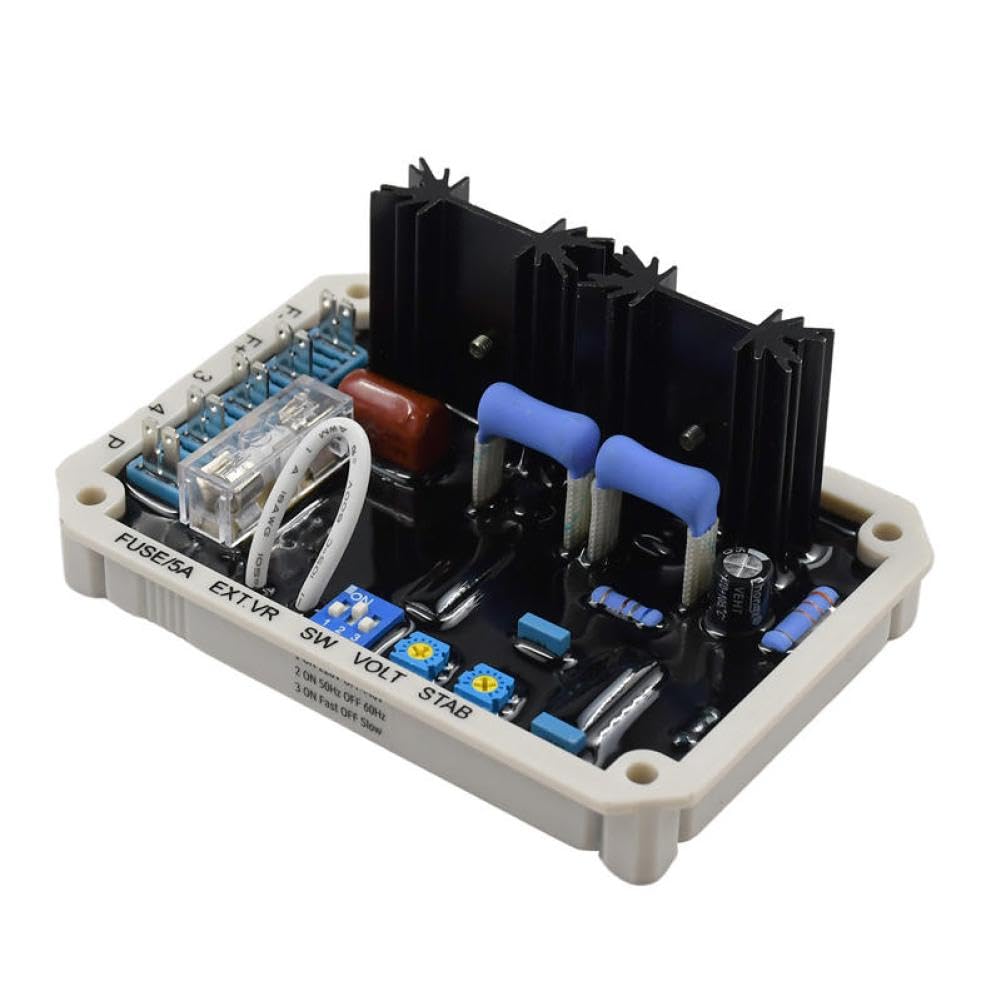

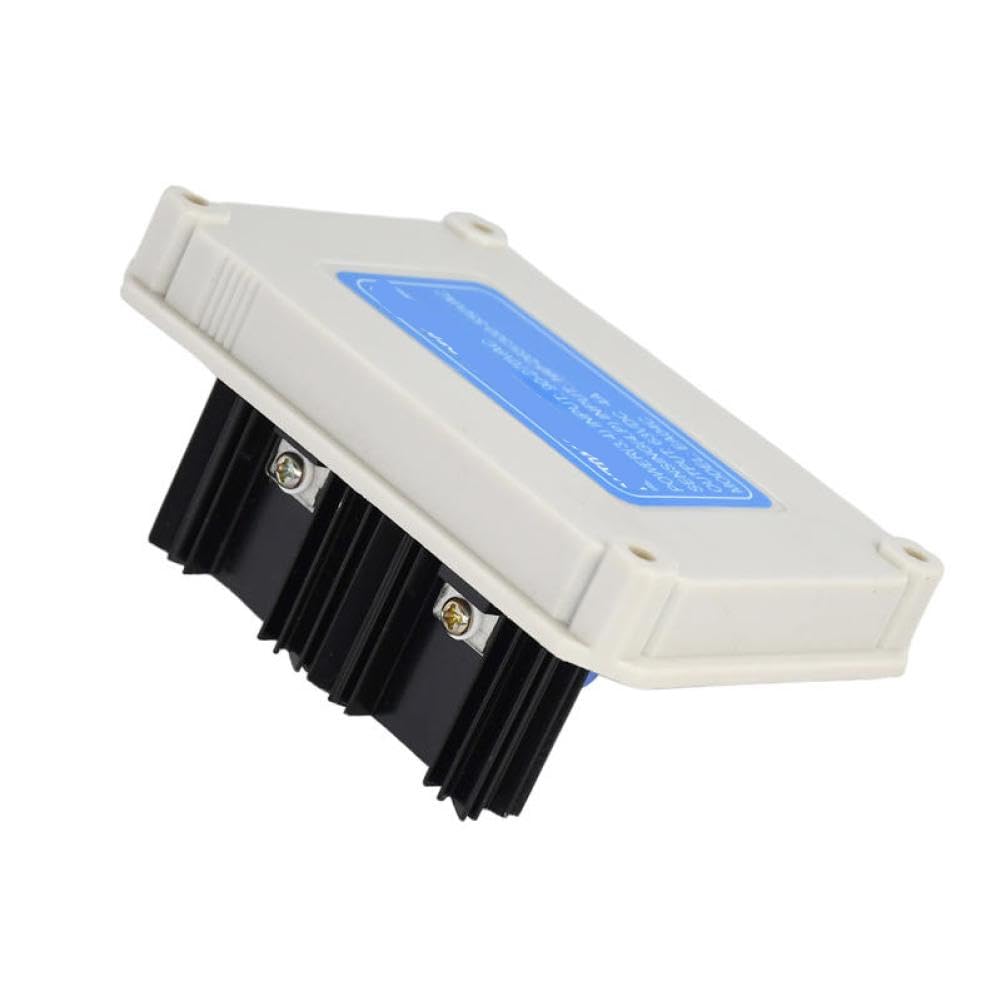

Automatic Voltage Regulator AVR EA04C Compatible with Basler Regulator VR63-4C Diesel Generator Alternator Genset Volt Part Number: EA04C Application: Compatible with Basler Regulator VR63-4C Suitable for use in diesel generator alternator genset voltage regulation systems Specifications: Automatic Voltage Regulator with 63 VDC output, 4 Amp sensing capacity, and input voltage options of 160~265 VAC or 300~550 VAC Sensing Input Voltage: 160~265 VAC / 300~550 VAC single phase Frequency: 50/60 Hz selectable Power Input: 90~240 VAC single phase Output Voltage: Maximum 32 VDC at 120 VAC input, maximum 63 VDC at 240 VAC input Current Rating: Continuous 4A, intermittent 7A for up to 60 seconds Field Resistance Range: Minimum 15 Ohm, maximum 100 Ohm Voltage Regulation Accuracy: Less than ±1% (with 4% engine governing) Voltage Build-up: Requires residual voltage greater than 5 VAC at AVR terminals External Voltage Adjustment: ±15% using a 1 K Ohm 1 watt Maximum Unit Power Dissipation: 8 watts EMI Suppression: Integrated electromagnetic interference filtering Thermal Drift: 0.05% per °C change in ambient temperature Under Frequency Protection: Adjustable via U/F knob from 43 to 60 Hz Over Excitation Shutdown: Field voltage shutdown after time delay if exciter field exceeds 100 ±5 VDC Operating Environment: Operating Temperature Range: -40°C to +60°C Storage Temperature Range: -40°C to +85°C Relative Humidity: Up to 95% non-condensing Vibration Tolerance: 1.5G @ 5~30 Hz / 5.0G @ 30~500 Hz AVR Control Functions: VOLT – Voltage adjustment STAB – Stability adjustment HZ – 50/60 Hz frequency selection VAR – External voltage regulation interface Dimensions: 101.0 mm (L) x 69.0 mm (W) x 47.3 mm (H) Package Includes: 1 x Automatic Voltage Regulator AVR Compatibility Disclaimer: This is an aftermarket replacement part.Any brand names or model designations mentioned are used solely for the purpose of demonstrating compatibility.
- Compatible with Basler VR63-4C ensuring integration with existing diesel generator systems
- Model EA04C designed specifically for use in automatic voltage regulation for genset alternators
- Maintains stable output voltage under varying load conditions for power performance
- Suitable for a wide range of diesel generator applications including industrial and standby power systems
- Direct replacement solution that simplifies maintenance and reduces downtime during regulator
| Color | oneColor |
|---|---|
| Model | PknYdoRRw 159 |
| Terminal | Spade |
| Brand Name | PknYdoRRw |
| Unit Count | 1.0 Count |
| Switch Type | Toggle |
| Circuit Type | ac_dc |
| Contact Type | Normally Open |
| Manufacturer | PknYdoRRw |
| Current Rating | 10 Amps |
| Operation Mode | Automatic |
| Item Dimensions | 1.97 x 1.18 x 0.79 inches |
| Number of Items | 1 |
| Contact Material | Silver |
| Operating Voltage | 250 Volts |
| Specification Met | CE |
| Included Components | Parts set |
| Number of Positions | 2 |
| Upper Temperature Rating | 60 Degrees Celsius |
| International Protection Rating | ip20 |
